awtrix on a pico

AWTRIX NG is lovely firmware. The Pimoroni Galactic Unicorn is a lovely board. They had never met, so I introduced them.

If you have not met it: AWTRIX NG is firmware for little LED matrix clocks. You flash it onto a board that has an LED panel on the front, and you get a clock that cycles through apps – time, date, weather, whatever you care to push at it – plus an HTTP API, MQTT, a web UI to set it all up, and a scripting engine for the things nobody thought of. It is what a lot of people run on an Ulanzi desk clock, and on homemade ESP32 builds.

Here is why I wanted this. There is an Ulanzi on my desk running AWTRIX NG and talking to Home Assistant, and it is one of those rare gadgets that just works. It is stable, it is easy to set up, and it has never once asked me to think about it. I also had a Galactic Unicorn, which is a much bigger and much prettier panel, and what it had been running all along was MicroPython: an MQTT message scroller, which I had taught to color its messages in a pull request back in 2024. It was fun and it did work, but stable is not the word I would use for it – and it was a long way from what the Ulanzi was quietly doing right across the room.

So the motivation is not complicated: I wanted the firmware I liked on the panel I liked looking at. I also wanted to know whether a Pico could carry the whole thing, which turned out to be the more interesting question.

Credit where it belongs, before any of the technical part: Blueforcer and the AWTRIX NG contributors built that firmware. Everything below exists only because what they wrote was clean enough and careful enough that a port was thinkable at all.

One expectation to set: this is an experimental personal build. The code lives in a fork, but a fork is not a product. I am not running a separate firmware distribution, and I am not signing up to maintain one.

What a Galactic Unicorn is

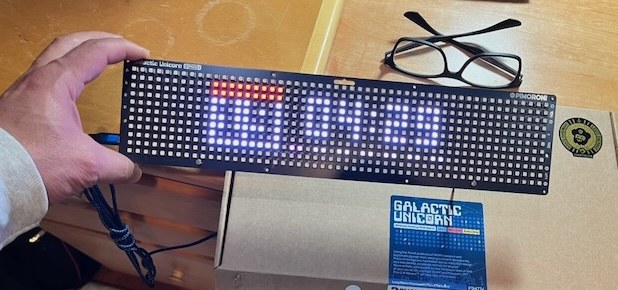

It is a 53x11 LED panel from Pimoroni with a Raspberry Pi Pico W or Pico 2 W on the back. Buttons down one side, a light sensor, a little speaker, and that is the whole device. No soldering, no wiring, no enclosure to print. You hold BOOTSEL, plug in USB, drop a .uf2 on it, and it is a different gadget than it was a minute ago.

That last part is half the appeal, honestly. The feedback loop on a board you can reflash by dragging a file is wonderful.

That is AWTRIX NG. The real thing: the same HTTP and MQTT API, the same web UI, the same Home Assistant discovery, the same Berry scripting. A handful of features that depend on hardware this board does not have are missing, and they are listed honestly at the end.

If you have one of these in a drawer, the Galactic Unicorn guide is your next step. Which .uf2 to drag, what the buttons do, how Wi-Fi setup works, and what the limits are.

What it looks like from Home Assistant

This is the part my DIY friends ask about first, so let me get to it early: nothing special happens here, and that is exactly the point.

Switch MQTT on, switch discovery on, and the board announces itself to Home Assistant as a single device, with lights and selects and buttons and sensors built from the hardware it actually has. There is no YAML to write for that part and no custom integration to install. The Unicorn on my bench turns up the same way the Ulanzi does.

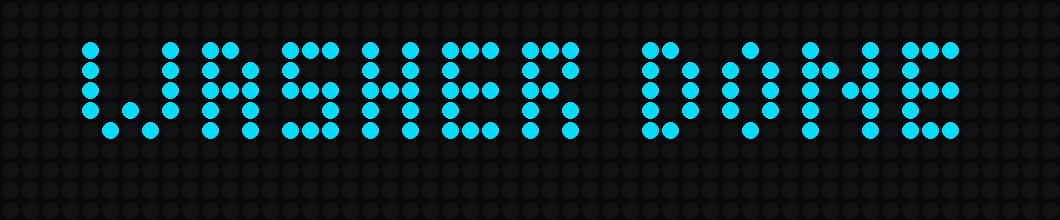

For the things you do want to drive yourself, every action has one command topic and the payload is plain JSON. The automation action that throws a message on the panel is this short:

action: mqtt.publish
data:
  topic: awtrix_galactic2w/cmd/notify
  payload: >-
    {"text": "washer done", "textColor": "#00DDFF"}

Two things to change for your own: awtrix_galactic2w is this board’s MQTT prefix, so put yours there instead – the web UI shows it under System -> MQTT – and all of this assumes Home Assistant already has its MQTT integration talking to a broker.

The HTTP body and the MQTT payload are deliberately the same JSON – anything you can curl you can publish, as the reference puts it. So you can work an automation out at the command line and then paste the payload straight into Home Assistant, which is exactly how the one above was made.

The architecture gave me a head start

Here is the thing that surprised me most, and it is a compliment to the people who wrote AWTRIX NG: the design was already asking for this.

By the time I started, the firmware already had more than one platform. There is an esp32, there is a linux app, and there is tc002 for the Ulanzi TC002, which is Linux running on the device itself. Adding rp2040 next to them was joining a pattern, not inventing one.

The whole Pico platform is 51 files and about 72 KB of source. That is it. Everything else – the apps, the effects, the API, the scripting engine, the web UI – is shared code that did not care what chip it was running on, because somebody had already been careful about that.

The rule that makes it work is written down in the project’s own PR checklist: src/core/ stays portable. No Arduino headers, no FastLED, no board headers. I had to respect that rule rather than invent it, and respecting it is what kept the port from turning into a swamp.

The panel is the fun part

If you read one section of this, read this one.

The Galactic Unicorn’s panel is 1 bit per channel. Each LED has a red, a green and a blue element, and each of those can only be fully on or fully off. There is no dimming in the hardware anywhere. Every shade you see has to be made out of timing.

The way you get 14 bits of brightness per channel out of that is binary code modulation, and it is one of those ideas that is obvious only after somebody shows it to you. You draw the same frame 14 times, once per bit plane. Plane 0 you leave on screen for 1 tick. Plane 1 for 2 ticks. Plane 13 for 8,192 ticks. Your eye adds it up. There is no PWM counter anywhere, no timer interrupt, no per-pixel math at display time – just a stream of bytes where the dwell time is baked in.

The stream is laid out so the hardware can eat it without help. One row of one bit plane is 60 bytes, and every byte has a job:

• 2 bytes of header – how many pixels are coming, and which row they belong to
• 53 bytes, one per pixel, carrying three bits each: the red, the green and the blue bit for this plane
• 1 spare byte
• 4 bytes holding 1 << plane – the dwell, in ticks, sitting right there in the data

That last one is where “the dwell time is baked in” stops being a figure of speech. From there it just multiplies up:

• a row of 14 planes is 14 x 60 = 840 bytes
• a whole frame is 11 x 840 = 9,240 bytes
• and there are two of them, so 18,480 bytes of static RAM is the panel’s standing cost

Then the RP2040 does the part that still makes me grin, and it needs two bits of vocabulary first. PIO is a set of tiny programmable state machines that sit right next to the pins and shift bits in and out on their own schedule. DMA channels copy blocks of memory from one place to another. The processor has to set both of them up; what it does not have to do, once they are running, is anything at all to keep the panel refreshing.

So: a PIO program of 24 instructions shifts the pixels out and burns the binary-weighted dwell. One DMA channel streams the 9,240 bytes into that PIO program. A second, tiny DMA channel does nothing but write the next frame’s base address back into the first channel’s read pointer, and then chain back to it.

The two of them chase each other in a circle forever. There is no refresh interrupt and the CPU is not involved at all – not between frames, not during frames, not even while the flash is being written. The panel keeps refreshing while the processor is off doing something else entirely, which on a board this small is the difference between a display and a slideshow.

A few details I enjoyed:

• It asks for pio1 before pio0, on purpose, to leave PIO0’s instruction memory for the Wi-Fi chip. More on that fight in a minute.
• The state machine’s clock divider is derived from the actual system clock, so the panel runs at identical timing on a Pico W and a Pico 2 W even though the chips do not run at the same speed.
• If it cannot get a PIO state machine or two DMA channels, it logs that plainly and the board keeps running with a blank panel instead of dying. A clock that admits it has no display is more useful than one that hangs.

The display half of this is adapted from Pimoroni’s own driver (MIT), and they deserve the credit for the hard parts of the panel timing. What is new is the 14-bit color path, which applies AWTRIX’s gamma exactly once, using NG’s own gamma setting, rather than Pimoroni’s fixed 2.2.

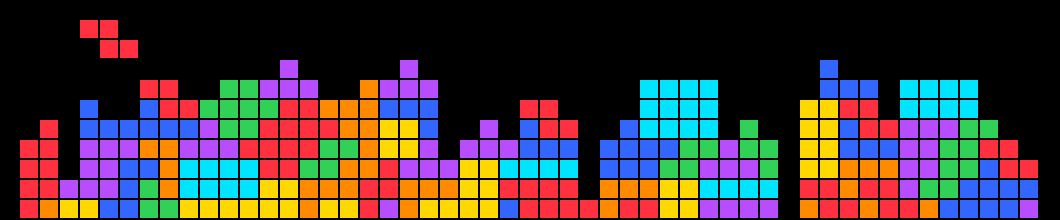

It runs the built-in games at 42 fps.

Eleven rows

The band AWTRIX draws its content into is eight rows high. That is what the icons are sized for, what the built-in apps are laid out for, and what the scrolling fonts are drawn against – and that shared assumption is a good part of why the icons and apps people pass around just work on somebody else’s clock.

The Unicorn has eleven.

The fix was 29 lines in core/render/ContentBand.h. What those lines do is hand every 8-row-assuming part of the firmware a clipped view into the middle of the real pixel buffer: same memory, same eight-row coordinates, just offset vertically. Deciding how far down is the easy half:

inline constexpr int kContentBandHeight = 8;

inline int contentBandTop(int height) {
  return height > kContentBandHeight ? (height - kContentBandHeight) / 2 : 0;
}

The rest of the header builds the view itself. Because that view still speaks in eight-row coordinates, every font keeps its baseline, every glyph keeps its clipping, and not one line of scroll math had to change. Rows count from zero, so on an eleven-row panel the band is rows 1 through 8: one row left dark above it, two below. On a 32x8 panel nothing moves at all.

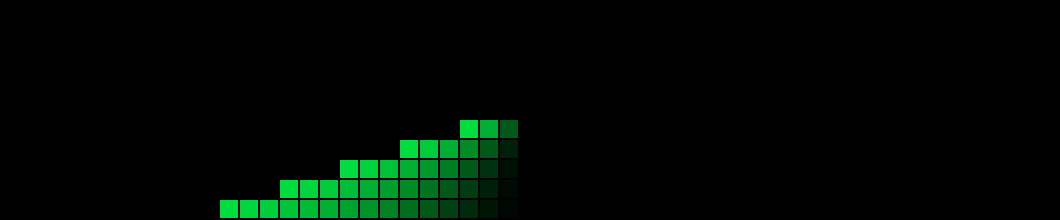

Backgrounds, effects, overlays, transitions and charts are not banded – those get the whole canvas, which is the entire point of having a taller panel. Scroll back up and you can see it: the effects and the game run right to the edges, and the text does not.

Panel heights from 8 to 16 now work on every board, not just this one.

The landmine I set for myself

This one cost me an embarrassing afternoon, and it is entirely my own fault, which is why I like it.

AWTRIX NG does not have a panel height setting. It has panelWidth, and the height is simply eight. And because the height is not a setting, pheight sits in the list of retired keys that the save path erases, so that boards upgrading from older firmware stop carrying a dead value around. That is correct housekeeping, and I would have written it the same way.

Then I came along and added panel height back.

So the setting was written to flash, and then, a few lines later in the same save, the cleanup for the feature’s own retirement deleted it again. The board reported the height you asked for right up until it rebooted, at which point it was eight rows once more. Nothing crashed and nothing logged, because from the firmware’s point of view everything worked exactly as designed.

The fix was deleting one string from one array. Finding it took considerably longer.

The lesson I am taking away: a cleanup list for a removed feature is a landmine for whoever brings that feature back. The entry is invisible, it lives nowhere near the code you are writing, and it does precisely what it was written to do. If you ever retire a setting, it might be worth leaving a comment on its headstone.

Four things that fought back

The radio and the display both want PIO

The CYW43 Wi-Fi chip needs PIO instruction memory and a state machine. So does the panel. There are not many of either.

Worse, the Arduino core for the Pico brings the radio up before setup() ever runs, so by the time any of my code exists, the radio has already taken what it wanted.

The fix is two linker wrappers:

-Wl,--wrap=init_cyw43_wifi
-Wl,--wrap=cyw43_cb_process_async_event

The first one defers the Wi-Fi bring-up until the display has claimed its PIO and DMA. The display, as mentioned, politely prefers pio1 and leaves PIO0 alone. Audio comes third, by design, so it cannot steal from the radio either.

The second wrapper is pure debugging luxury: every CYW43 event – type, status, reason, which AP, what join state – gets logged. When a link drops at 2am, the device log says why.

There is also a 20 millisecond self-check that runs after Wi-Fi comes up. It watches the DMA read address and logs refresh advancing or refresh NOT advancing. It answers exactly one question – “did the radio just steal my panel?” – and it answers it in the log instead of in my imagination.

One missing linker flag

This one is my favorite bug of the whole project, purely for blast radius per character.

The Arduino core’s PlatformIO builder omits _printf_float. Its Arduino IDE configuration adds it; the PlatformIO path does not.

So: every float in the JSON API rendered as nothing at all.

{"lightLevel":,"...

Which makes the JSON unparseable. Which makes the web UI fail to read the device state. Which makes the web UI conclude the device is unconfigured, and drop into the Wi-Fi setup screen – on a board that was sitting happily on the network the whole time.

I spent a while on the wrong floor of that building. The fix:

-Wl,-u,_printf_float

Twenty characters. :)

Five sockets, eight requests

Open the AWTRIX web UI and your browser fires off eight requests at once. The Pico’s lwIP has five TCP sockets. Five of those requests get a socket; the other three arrive to find the pool full.

That alone would be fine – the latecomers would just wait their turn. What was not fine is that accepted clients were given minimum priority while the listening socket sat at normal priority. So when request number six knocked, lwIP made room for it by aborting one of the five live connections instead of leaving it to wait. Two or three of the eight would die with a reset, and the UI would load half-empty.

Running the listener at the same priority as its clients turns that abort into a dropped SYN, and a dropped SYN is just a browser retry. Nobody notices.

There was a second-order trap waiting underneath it, too: lwIP reports that dropped connection as an accept callback with a null pointer, and the server class would wrap the null and fault on it. Which it did, on my bench, under load – the board hard-faulted and froze solid, no ping, no serial, and the next flash attempt failed because it could not even reach BOOTSEL. That one needed a human to walk over and pull the USB cable.

An eight-second watchdog versus a very patient client

The RP2040’s hardware watchdog maxes out around 8 seconds, and AWTRIX handles a whole HTTP request and its response inside one pass of the main loop. The Arduino web server’s timeouts restart whenever a byte moves.

Put those together and a client that sends one byte every two seconds can hold the loop open forever, and the watchdog reboots the board. Not maliciously – a phone on bad wifi does this by accident.

The fix was to stop trusting the client’s pace anywhere, with a separate deadline in each direction.

Coming in, the clock is on arrival. Headers go into a bounded buffer and anything past 2 KB of them gets a 431 and a closed connection. A client then has 5 seconds to deliver those headers and the first 2 KB of body, and is dropped if it has not managed that. A body longer than 2 KB keeps feeding the watchdog as it arrives, one network segment at a time.

Going out, the response is written in whatever size the send buffer has room for right now, feeding the watchdog between pieces. Here the 5 seconds covers the whole response rather than each piece of it, so a reader that has stopped reading is given up on outright – a 40 KB file that used to hold the loop for 40 seconds now lets go after about 5.

My favorite small bug in this pile: the reset reason has to be read once, before the watchdog is armed. Read it later and an ordinary reboot – say, the one right after you flash the board – reports itself as a watchdog reset. I spent a few minutes being very confused by a board that insisted it had crashed when it had merely been reflashed.

And the honest ending, because this is the kind of thing it would be easy to oversell: this is not completely solved. A body over 2 KB sent slower than roughly 180 bytes per second can still trip the watchdog. It is written down as a known limit rather than papered over.

Testing a board you are not holding

This is the part I would most like someone to steal.

Almost all of the Pico-specific logic that can be pure, is pure. The bit-plane packing, the color lookup table, the button debouncing, the geometry rules, the orientation transforms – all of it lives in headers with no SDK and no Arduino dependency, and all of it is tested on a laptop in about a second. The header that does the panel packing says so right at the top: no SDK/Arduino dependencies: host-testable.

On top of that:

• tools/container/ci-local.sh all runs the same gates CI runs, in a container, with no toolchain installed on the host: host tests, every build variant, the web UI tests, the docs checks. I ran it on every one of the 27 milestone commits, and all 27 passed. Not because I am virtuous, but because a 300-file change that can only be reviewed as one blob is not really reviewable at all.
• tools/pico/smoke.sh is about 110 HTTP calls, one per line, PASS or FAIL. The design decision I am happiest with: every write it makes, it undoes on exit. That means you can point it at a board you actually use, repeatedly, without it leaving junk behind.
• tools/pico/burst.sh fires the exact eight requests the web UI opens on load, ten rounds, eighty requests. That is the script that found the socket-priority bug, and the one that hard-faulted the board.

And then the real board, on a bench, with a camera pointed at it, for everything a host test cannot know: that the panel is actually lit, that the letterboxed 8-row mode lands on the right rows, that melodies come out of the speaker at every volume step, that the watchdog really does recover from a deliberate hang.

Here is the thing nobody tells you about hardware projects: the hard part is not writing the code, it is knowing whether it works. Pushing as much as possible into pure functions tested on a laptop is how you get to spend your bench time on the questions that genuinely need a bench.

For the record, where it ended up:

The Pico W fits with every feature turned on, which I genuinely did not expect when I started.

A much smaller thing, sent the right way

Somewhere in the middle of all this I wanted something simple: a Berry app that shows a different random background effect each time it comes around. Berry is the small scripting language AWTRIX NG embeds, so you can add behavior to a display without building firmware.

So I wrote one. And it had to start like this:

self.names = ["BrickBreaker", "Checkerboard", "ColorWaves", "Fade", "Fireworks",
              # ... thirteen more, typed out by hand ...
              "TwinklingStars"]

Nineteen effect names, pasted into a script, going stale the moment the firmware adds or renames one. The firmware knows this list perfectly well – it serves it from /api/v1/capabilities – but a script could not ask for it.

So that became an issue and then a small pull request upstream, adding two globals next to the existing effect() and overlay() calls:

effects()    # ["BrickBreaker", "Checkerboard", "ColorWaves", ...]
overlays()   # ["drizzle", "frost", "rain", "snow", "storm", "thunder"]

They return the effect registry’s own list – the exact same vector /api/v1/capabilities serves – so the two can never disagree with each other. 508 bytes of flash, zero RAM, on the ESP32 build. And not one line of it has anything to do with a Pico.

One detail I liked solving: the script has to run on firmware that does not have this yet, and in Berry a bare call to a function that does not exist will not even compile. So it goes looking through the global module instead, and falls back to the embedded list when the call is not there. One script, both firmwares. The whole thing is about fifty lines – here it is as a gist, ready to paste into the web UI.

If you would rather do it from Home Assistant and skip scripting entirely, this blueprint does the same job over MQTT. It is a port of N1c093’s AWTRIX 3 flow, and it works on any AWTRIX NG display – no Pico required.

About upstream

When I finished the first version of this port, I posted about it on the AWTRIX Discord and opened a PR.

Blueforcer answered quickly and plainly, and his reasons were good ones. Eleven rows is a format nothing in the ecosystem assumes: the icons and apps and scripts that AWTRIX users share with each other are built for 8 or 16. Supporting the heights in between is real ongoing work, for the firmware and for the AWTRIX Hub behind it. And the architecture was about to be reworked, so the PR would break.

He was right on all three, and most right on the last one. The rework landed, my PR broke completely, and the port I am writing about is a re-port onto the new design rather than a rebase – I threw the old one on the floor and did it again, following the new structure. Being told that early, by somebody who could have just said nothing, saved me from finding it out the hard way.

Whether another chipset belongs upstream is a maintainer’s call and nobody else’s. More platforms and more panel sizes mean more to support, and no amount of tidy code makes that cost go away.

The one thing I would still love to see someday: a Pico W / Pico 2 W DIY square sitting next to “ESP32 DIY” and “ESP32-S3 DIY” on the AWTRIX NG site. Not this strange eleven-row board – a Pico 2 W driving an ordinary off-the-shelf 32x8 matrix, which is eight rows like every other DIY build, where the only thing that changed is which microcontroller is on the back. The work is parked where it can be found.

Where everything is

Everything is public.

• The port: PR #12 – 31 commits, 323 files, merged into main-picow. main on that fork stays in sync with upstream.
• The first version, on the older base: PR #1.
• The Galactic Unicorn guide – flashing, buttons, Wi-Fi setup, what each build has and does not have, and an honest list of known limits.
• The display engineering page – the PIO/DMA details above, in much more depth.
• How settings are stored – there is no NVS on a Pico, so there is a small atomic key-value format on LittleFS instead.
• The small upstream contribution: issue #106 and PR #107.

Things it does not do, so nobody gets surprised: no MP3 or internet radio (it plays melodies through a tone output, not a decoder), no outbound TLS, and no firmware update from the browser – there is no second firmware slot in the Pico’s flash layout, so updates are a UF2 over USB. There is no battery and no temperature sensor, because the board does not have them.

One more thing, because it belongs next to the downloads rather than buried. Blueforcer has asked that forks not use his AWTRIX Hub, and that is entirely his to ask. The firmware here never contacts it – that is upstream’s design, not anything I added. What is left is the web UI, which I took from upstream unchanged and which goes looking for icons and script updates in your browser, the same way it does on any AWTRIX NG device. I have left it the way upstream ships it, and written that down here rather than let somebody find it in a packet capture.

Thanks

To Blueforcer and everyone who has contributed to AWTRIX NG: thank you. For the firmware, for the Hub, for answering a stranger’s question, and for being straight with me about what you could and could not take on. The architecture you built is clean enough that a port like this was possible for one person in their spare time, and that is not an accident – that is design.

To Pimoroni, for the Galactic Unicorn and for publishing the driver that taught me how its panel actually works.

And to Claude, for the assist. This project had a lot of long, fiddly, measure-it-again work in it – PIO timing, DMA chaining, watchdog budgets, a linker flag hunt that went on much too long – and having a tireless pair to think out loud with made it genuinely fun. It helped me put this page together, too.

Thanks for reading this far. If something here is wrong or unclear, please do reach out – I would rather know.

Go makers go! :)

Enjoy!
